- Place of Origin: guangdong
- Brand Name: new bull
- Model Number: NB-1530Y

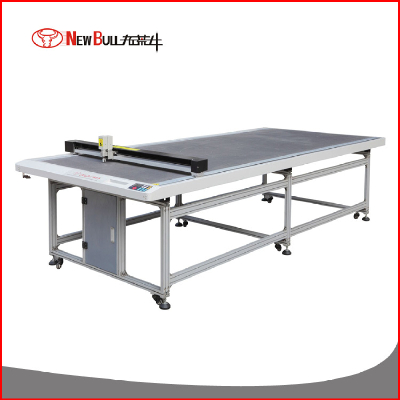

Table of Technical Information on Composite materials Computerized Cutting Machines
| NB-1530-Y | NB-0609-Y | NB-1215-Y | NB-1230-Y | |
| Technical information/model | ||||
| Operation properties | Computer operation and cutting machines can be used simultaneously for quick data transmission capable of continuous operations | |||
| Cutting speed | Maxi 1000mm/s | |||
| 0.2-3mm | ||||
| Cutting Thickness | ||||
| Cut materials | 3mm maximum thickness materials of:carbon fiber composite materials and leather materials,foam board etc. | |||
| Number of pens | 8 different groups of strokes,half Cut and full Cut | |||
| Positioning device | Red Ultra-Light | |||
| Method for fixing paper | Vacuum absorption | |||
| ±0.2mm | ||||
| Cutting tolerance | ||||
| ≦0.05mm | ||||
| Repeat accuracy | ||||
| Transmission interface | Ethernet port | |||
| Format compatible | Compatibility format AI software,Autocad,Coraldraw and all box software | |||
| HP-GL和GP-GL | ||||
| Direcive system | HP-GL and GP-GL | |||
| Digital control panel | Liquid crystal display and contact button | |||
| Transmission materials | Straight-line guide rails and imported synchronous belts | |||
| Supply voltage | AC 220V 380V ±10%，50HZ | |||
| 300cm*150cm | 60cm*90cm | 120cm*150cm | 120cm*300cm | |
| Cutting area | ||||
| 338*188*100cm | 100*128*100cm | 168*199*100cm | 168*338*100cm | |
| Overall dimension | ||||
Functions and special feature

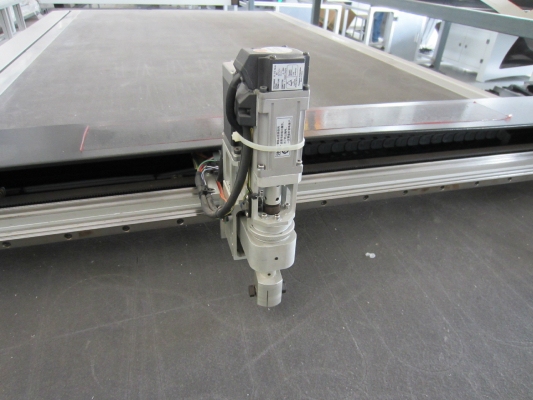

● A product of Sino-Swiss technologies,motors are imported from Switzerland.The cicular knife driven by motor can smoothly turn with different angle to achieve smooth cutting on different materials.
● AMT straight-line guide rails from ltaly are used as drive rails to ensure the machines will run in a steady manner at utmost accuracy.
● There are 8 different stroke setting,half cut,full cut.
● 3mm maximum thickness materials of:carbon fiber composite materials and leather materials,foam board etc.
● Date wire all imported from Germany.
● Table mat are imported from USA,the fiber board are durable,with good,permeability,very stable in thickness and shape.
● Date is transfer by Ethernet,the most stable method.File can be exported to machine directly from Adobe Illustrator,Coraldraw without conversion to maintain maximum accuracy.
● Machine can ruu at the maximum speed of up to 1000mm per second.
● All fine tuning can be made with control penal on the machine.Files export with software smoothening to enable quick and smooth cutting result.
