- Place of Origin: guangdong
- Brand Name: new bull
- Model Number: NB-0912A

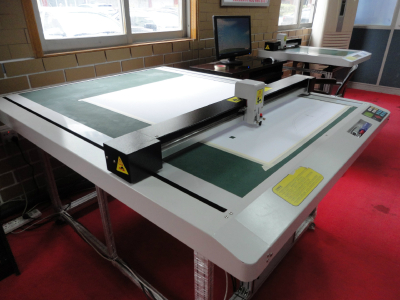

NewBull Computer Sample Plotters and Cutting Machines
| NB-0609E | NB-0609A | NB-0912A | NB-1215A | NB-1218A | |
| Technical information/model | |||||
| 128x93x92cm | 128x93x92cm | 158x133x92cm | 185x161x92cm | 215x135x92cm | |
| Overall dimension | |||||
| 90x60cm | 90x60cm | 120x90cm | 150x120cm | 180x120cm | |
| Cutting area | |||||
| Operation properties | Computer operation and cutting machines can be used simultaneously for quick data transmission capable of continuous operations | ||||
| Cutting speed | 1200mm/s quickest | ||||
| ≤2mm | |||||
| Cutting thickness | |||||
| Cutting materials | Yellow thick paper board, red hard paper board, PVC board, ivory cardboard, sulphite paper, insole fiberboard and plastic board, etc | ||||
| Cutting style | Multipurpose blade holder, 4 groups of different strokes, half blades | ||||
| Pen shape/cutter shape | Common gel pens, oily pens, ball pens/specific tungsten steel cutter | ||||
| Fixing manner | Double-sided adhesive/vacuum absorption/static absorption | ||||
| 0.007mm | |||||
| Mechanical resolution | |||||
| Software resolution | 0.025mm, 0.01mm, 0.1mm optional | ||||
| Transmission interface | Standard parallel port,serial port,Ethernet port | ||||
| 256M | |||||
| Buffer capacity | |||||
| Transmission materials | Imported straight-line guide rail | ||||
| Directive system | HP-GL compatible format | ||||
| Digital control panel | Liquid crystal display and contact button | ||||
| Supply voltage/power | AC 220V ± 10%/50Hz | ||||
| 6A、2A | |||||
| Fuse specification | |||||
| Servomotor | Step motor, servomotor | ||||
Functions and special feature
● Imported straight-line guide rails are used for the transmission system at a quick speed,high accuracy,low noise and steady quality.
● Japanese originally imported pieces for static boards,and a great number of imported products are also used for other parts and components.
● The quickest cutting speed is at 1200mm/s.
● A buffer at 256M and completion of one-off quick transmission.
● Standard I/O interface in HP-GL format.
● Any CAD software can be connected.It is widely used for plotting and cutting for the industries and sectors like garment,shoe making, cases,handbags,laser cutter molds plotting,lighting fixtures,advertising gifts,self-adhesive and color box packing.
- Place of Origin: guangdong
- Brand Name: new bull
- Model Number: NB-0912A
